The RNDI’s signature sound is the product of new custom Rupert Neve-designed transformers and class-A biased, discrete FET amplifiers. The carefully orchestrated union of these two elements is key to the RNDI’s unique response, delivering a powerful and vibrant direct sound capable of reproducing the full harmonic depth of basses, guitars, acoustic instruments, and professional line level sources. With portable, powerful, larger-than-life tone for your instrument and amplifier signals, the RNDI is truly the first standalone DI worthy of the Rupert Neve name.
The Development
After coming into existence during an experimentation with new transformer designs, the RNDI was fine-tuned over a series of listening tests against the the most popular high-end DIs available. It was in these tests where the RNDI always seemed to add another dimension to the sound and bring the instruments to life. The lows felt richer, deeper and fuller, and the highs had outstanding clarity without any added harshness. Most importantly, the design team noted: “As musicians, the RNDI consistently stood out as the DI we wanted to play through.”
The Elements of Direct Tone
The RNDI’s signature sound is the product both of new custom Rupert Neve-designed transformers and class-A biased, discrete FET amplifiers. The carefully orchestrated union of these two elements is key to the RNDI’s unique response.
Game-Changing Headroom

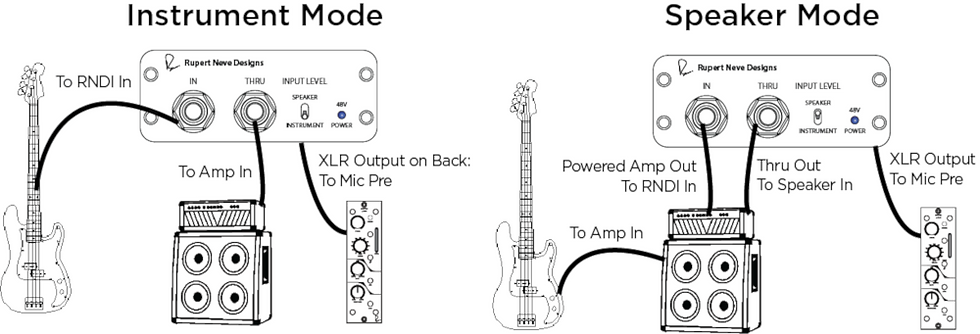

In instrument mode, the RNDI’s high input headroom of +21.5dBU is capable of handling not only instruments, but professional, line level sources like interfaces, CD players and drum machines without a pad. This allows the RNDI to serve as a way to “Re-Preamp” any previously recorded track using your interface and a desired pre-amp. To do this, simply connect a channel output of the interface to the input of the RNDI and connect the RNDI’s output to the preamp and engage 48V. By “Re-Preamping” you can apply the tone of another preamp to the source and more accurately automate or control the drive level on the preamp.
In speaker mode, the RNDI can handle the screaming output of a 1000-watt power amplifier (92 Vrms or 266Vp-p) to capture the full tone of the instrument, preamplifier, EQ, inserts, and the amplifier’s output stages before it hits the speakers. This technique allows the engineer to avoid any bleed in a live environment and any unwanted tone added by the speaker cabinet or microphone. When used with modern speaker emulation plug-ins, this technique allows the engineer to take advantage of both the flexibility of digital modeling and the superior non-linear response of an actual analogue amplifier.
Groundbreaking Direct Tone
When class-A, discrete amplifiers meet Rupert’s custom transformers, good things happen to your tone. The RNDI is imbued with the unique components and design knowledge that makes it worthy of the Rupert Neve name
Huge Headroom
The high input headroom of +21.5dBU is capable of handling professional, line level sources without a pad – and in speaker mode, the RNDI can handle the full output of a 1000-watt power amplifier (92 Vrms or 266Vp-p).
Rugged Solid-Steel Frame
The rugged steel chassis features an industrial-grade powder coating, and is built to withstand the severe stresses of life on the road
Takes All Kinds
The RNDI has immensely consistent performance across a wide variety of sources due to its 2M Ohm discrete FET input and high headroom. You can confidently use the RNDI with basses, guitars, acoustic instruments, keyboards, and even professional line level devices. In instrument mode, you can even connect a professional line level interface output to “Re-Preamp” a previously recorded source
Drive Longer Lines
The low impedance transformer coupled output – below 50 ohms – is capable of driving long lines with unrivaled high frequency performance
1/4” THRU Output
In instrument mode the THRU output can feed the amplifier input for reinforcement. In speaker mode, the THRU is used to feed the amplified signal to the speaker
Best in Class Phase Coherence
Phase coherence is excellent at all frequencies, which keeps the sound well-balanced and natural, and is especially vital when blending the direct signal with a microphone capture of the same source
Ground Lift
A ground lift switch is provided on the back to help fix any problematic grounding.
Phantom Powered
The RNDI is powered by standard 48V phantom power. Power is indicated by a blue LED on the front panel
Neve RNDI Active Transformer Direct Interface
Specs
Noise:
Measured Output, un-weighted, 22Hz-22kHz, source impedance 150 Ohms to 10K Ohms
Better than -110dBV
Input Impedance
Instrument Setting: 2.2 Meg Ohm
Speaker Setting: 200k Ohm
Output Impedance
Less than 40 Ohms
Frequency Response
+/- 0.25dB from 25Hz – 44kHz
+/- 1dB from 12.5Hz – 63kHz
-3dBu @ 92kHz
Maximum Input Level
Instrument = +21dBu Typical Speaker = +41.5dBu, 92 Vrms (266Vp-p)
Maximum Output Level
+11.5dBu output at maximum input level
Total Harmonic Distortion plus Noise
@ 1kHz, +20dBu input level:
0.25% Typical (2nd and 3rd harmonic)
@ 1kHz, -20dBu input level :
0.015% Typical (2nd and 3rd harmonic)
@ 20Hz, -20dBu input level :
0.75% Typical (2nd and 3rd harmonic)
Power Requirements
Phantom power, 4.5mA @ +48VDC
Weight
1.5lbs
Dimensions
6.25” long x 4”wide x 1.5” high
