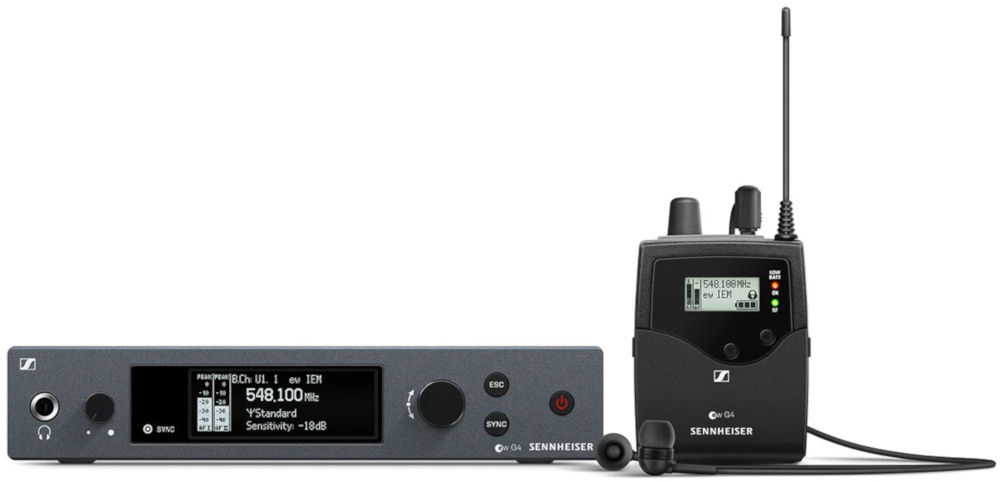

Sennheiser EW IEM G4 In Ear Monitor
Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.

Full control over your performance – everywhere, every day. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you!
  • Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
  • Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
  • Half-rack stereo transmitter in a full-metal housing with OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Compatible with Sennheiser WSM control software for flexible frequency allocation
  • Up to 16 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 50 mW) depending on country regulations

Sennheiser EW IEM G4 In Ear Monitor

$1,049.95Price

SR IEM G4

  • Frequency range

  • Dimensions

    Approx. 202 x 212 x 43 mm

  • Compander

    Sennheiser HDX

  • THD, total harmonic distortion

    <0.9 %

  • Weight

    Approx. 980 g

  • Audio input

    2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced

  • Audio output

    ¼" (6.3 mm) stereo jack socket, balanced

  • Signal-to-noise ratio

    >90 dB

  • RF output power

    switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

  • Switching bandwidth

    up to 42 MHz

  • Peak deviation

    ±48 kHz

  • Nominal deviation

    ±24 kHz

  • Modulation

    Wideband FM stereo (MPX pilot tone)

  • Power supply

    12 V DC

  • Current consumption

    max. 350 mA

  • Max. Input voltage

    +22 dBu

  • Transmission frequency

    Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels

  • AF frequency response

    25 Hz to 15 kHz

  • Temperature Range

    -10 °C to +55 °C

  • Frequency stability

    ±10 ppm

  • Antenna Output

    BNC socket, 50 Ω

EK IEM G4

  • Dimensions

    Approx. 82 x 64 x 24 mm

  • Compander

    Sennheiser HDX

  • THD, total harmonic distortion

    ≤ 0.9 %

  • Weight

    (incl. batteries) approx. 125 g

  • Signal-to-noise ratio

    approx. 90 dBA

  • Switching bandwidth

    up to 42 MHz

  • Peak deviation

    ±48 kHz

  • Nominal deviation

    ±24 kHz

  • Operating time

    approx. 4 to 6 hours (depending on volume level)

  • Modulation

    Wideband FM

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Current consumption

    at nominal voltage: approx. 140 mA

    with transmitter switched off: ≤ 25 µA

  • Adjacent channel rejection

    Typically ≥ 65 dB

  • Audio-Output-Power

    2 x 100 mW at 32 Ω

  • Intermodulation attenuation

    Typically ≥ 70 dB

  • Limiter

    –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off

  • Powering

    3 V battery / 2.4 V rechargeable battery

  • Receiving frequency

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels

  • RF sensitivity

    < 4 μV, typ. 1.6 μV for 52 dBA rms S/N

  • Squelch

    5 to 25 dBµV, adjustable in steps of 2 dB

  • Bass Boost

    +8 dB at 80 kHz

  • Temperature Range

    -10 °C to +55 °C

  • Receiver Principle

    Adaptive diversity

  • Blocking

    ≥ 80 dB

What's in the Box

  • SR IEM G4 stereo transmitter
  • EK IEM G4 stereo receiver
  • IE 4 earphones
  • 2 AA batteries
  • rod antenna
  • GA 3 rackmount set
  • quick guide
  • safety guide
  • manufacturer declaration sheet
  • power supply
