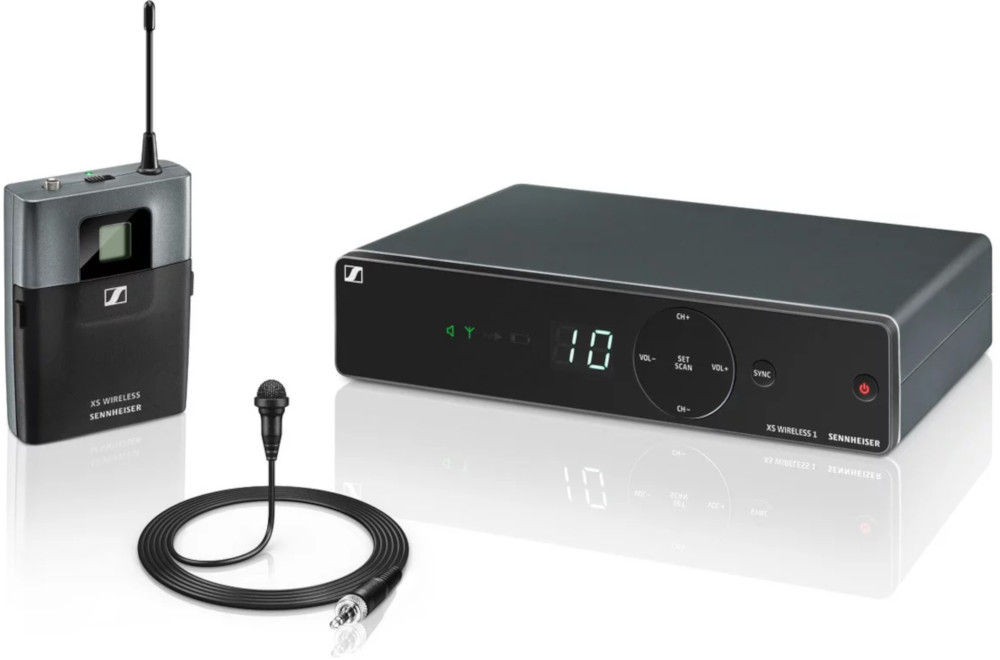

Sennheiser XSW 1-ME2 Lavaliere Mic System
Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

  • Compact bodypack transmitter, unobstrusive clip-on microphone
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

Sennheiser XSW 1-ME2 Lavaliere Mic System

$299.95Price

Receivers

  • Dimensions

    approx. 200 x 42 x 127 mm

  • Weight

    approx. 340g

  • Power supply

    12 V DC nom. / 300 mA

  • AF frequency response

    50 to 16,000 Hz (–3 dB)

Transmitter

  • Dimensions

    approx. 71 x 96 x 28 mm

  • Weight

    approx. 95g

  • Power supply

    2 AA size batteries, 1.5 V

  • Adjustment Range Transmitter

    0 to -30 dB, adjustable in 10 dB steps

Microphone

  • condenser

  • THD, total harmonic distortion

    ≤ 0.9%

  • Pick-up pattern

    omni-directional

  • Signal-to-noise ratio

    ≥ 103 dBA

  • RF output power

    10 mW

  • Switching bandwidth

    up to 24 MHz

  • Operating time

    approx. 10 hrs

  • Modulation

    wideband FM

  • Output voltage

    '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

  • Housing

    rugged ABS housing

  • Diversity reception

    antenna switching diversity via internal antennas

  • Frequency

    8 frequency banks, each with up to 10 factory-preset channels

  • Frequency range

    A: 548-572 MHz, GB: 606-630 MHz

    B: 614-638 MHz, C: 766-790 MHz

    D: 794-806 MHz

    E: 821-832 MHz, 863-865 MHz

    K: 925-937.5 MHz

  • Sensitivity

    < 3 μV at 52 dB(A)rms S/N

  • SPL for peak deviation

    130 dB

  • Squelch

    adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)

  • Synchronization

    2.4 GHz, Low Power OQPSK (only active during synchronization)

  • Input sensitivity

    1.5 mV / Pa

  • Audio adjustment range

    45 dB, adjustable in 5-dB steps

  • Line / Mic level

    20 dB, switchable

  • Temperature Range

    operation: 0°C to +40°C, storage: –20°C to +70°C

  • Receiver Principle

    double superheterodyne

What's in the Box

  • 1 receiver EM-XSW 1
  • 1 lavalier microphone ME 2-2
  • 1 bodypack transmitter SK-XSW
  • 1 power supply NT 12-5 CW
  • 2 AA batteries
