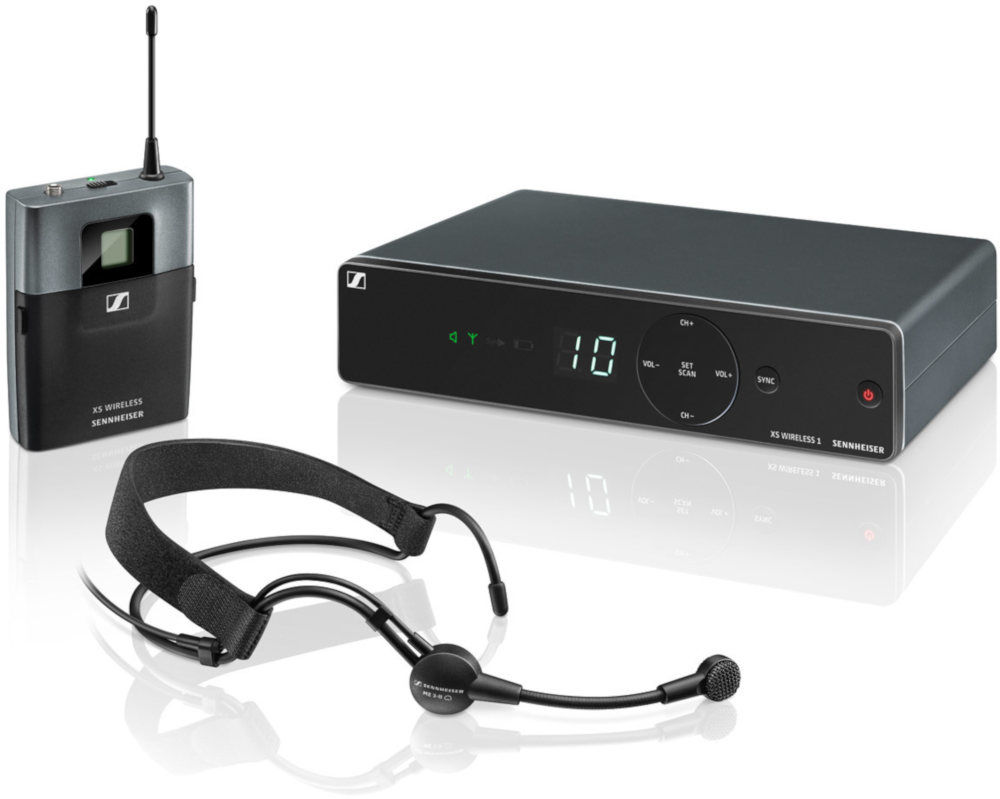

Sennheiser XSW 1-ME3 Headset Wireless Mic
Hands-free performance. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 HEADMIC SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound that involves dancing and singing all at the same time. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a compact bodypack transmitter and a lightweight headset microphone.

  • Lightweight headmic and compact bodypack transmitter
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

Sennheiser XSW 1-ME3 Headset Wireless Mic

$399.95Price

Receivers

  • Dimensions

    approx. 200 x 42 x 127 mm

  • Weight

    approx. 340g

  • Power supply

    12 V DC nom. / 300 mA

  • AF frequency response

    50 to 16,000 Hz (–3 dB)

Transmitter

  • Dimensions

    approx. 71 x 96 x 28 mm

  • Weight

    approx. 95g

  • Operating time

    Approx. 10 hrs

  • Power supply

    2 AA size batteries, 1.5 V

  • Adjustment Range Transmitter

    0 to -30 dB, adjustable in 10 dB steps

  • Microphone

    Condenser

  • THD, total harmonic distortion

    ≤ 0.9%

  • Pick-up pattern

    Cardioid

  • Signal-to-noise ratio

    ≥ 103 dBA

  • RF output power

    10 mW

  • Switching bandwidth

    up to 24 MHz

  • Modulation

    Wideband FM

  • Output voltage

    1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

  • Housing

    Rugged ABS housing

  • Frequency

    8 frequency banks, each with up to 10 factory-preset channels

  • Frequency range

    A: 548-572 MHz, GB: 606-630 MHz

    B: 614-638 MHz

    C: 766-790 MHz

    D: 794-806 MHz

    E: 821-832 MHz, 863-865 MHz

    K: 925-937.5 MHz

  • Sensitivity

    < 3 μV at 52 dB(A)rms S/N

  • SPL for peak deviation

    150 dB

  • Squelch

    adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)

  • Synchronization

    2.4 GHz, Low Power OQPSK (only active during synchronization)

  • Input sensitivity

    1.5 mV / Pa

  • Audio adjustment range

    45 dB, adjustable in 5-dB steps

  • Line / Mic level

    20 dB, switchable

  • Temperature Range

    Operation: 0°C to +40°C, storage: –20°C to +70°C

  • Receiver Principle

    Double superheterodyne

  • Diversity principle

    Antenna switching diversity via internal antennas

What's in the Box

  • 1 receiver EM-XSW 1
  • 1 headset microphone ME 3-II
  • 1 bodypack transmitter SK-XSW
  • 1 power supply NT 12-5 CW
  • 2 AA batteries
