One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with an XS 1 microphone, this elegant solution makes wireless vocals easier than ever before while maintaining a reliable connection.
One touch ease-of-use
2.4 GHz digital transmission for worldwide operation
75m range (250ft) in optimal conditions
Up to 5 hours battery life on a single charge
Switch between multiple transmitters linked to one receiver
Configure any combination of transmitters and receivers
Mute from either transmitter or receiver
Sennheiser XSW-D VOCAL SET: Digital wireless handheld system with cardioid Mic
Specs
Dimensions
- XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
- XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
- XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
- XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
- XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
THD, total harmonic distortion
- < 0.1 %
Charging time
- typ. 3 h
Audio output
- max. 12 dBu
Operating temperature
- -10 °C to +55 °C (14 °F to 131 °F)
Signal-to-noise ratio
- ≥ 106 dB
Operating time
- up to 5 h
Modulation
- GFSK with TDMA
Battery Specification
- Li-Ion
Capacity
- 850 mAh
Codecs
- aptX® Live
Frequency range
- 2,400 - 2,483.5MHz
Max. Input voltage
- typ. 5.0 V
Transmission power
- max. 10 mW
Voltage
- 3.7 V
Operating relative humidity
- 95 % (non-condensing)
Latency
- < 4 ms
Temperature Range
- 0 °C - 60 °C (32 °F - 140 °F)
Audio frequency response
- 3.5 mm Jack/XLR: 80 - 18,000 Hz
- 6.3 mm Jack: 10 - 18,000 Hz
What's in the Box

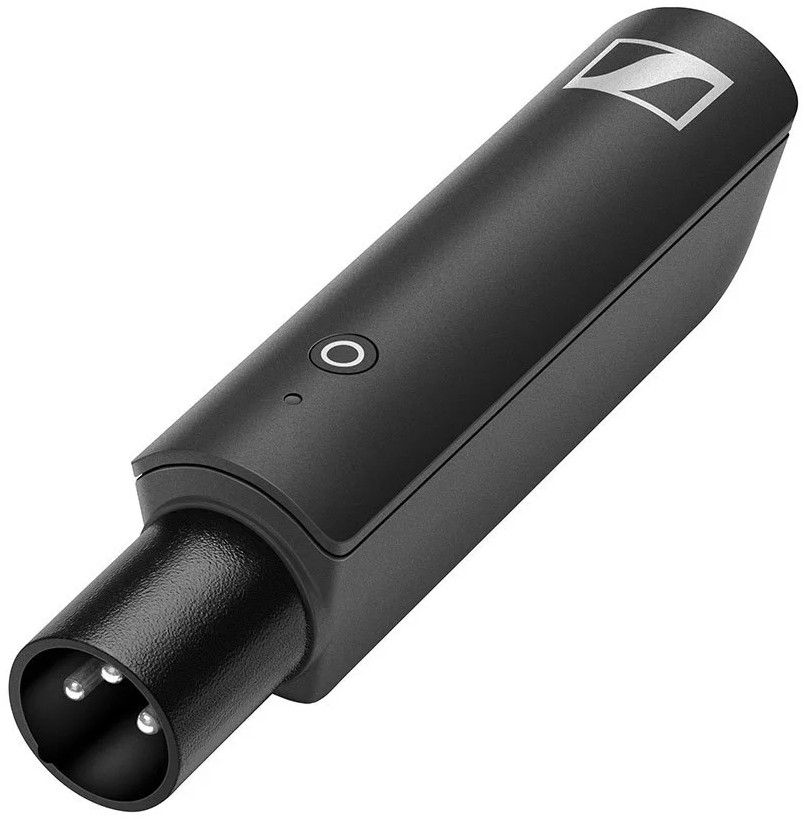

- XSW-D XLR female transmitter
- XSW-D XLR male receiver
- XS 1 cardioid dynamic vocal microphone
- Mic clip
- USB-A to USB-C charging cable
